Bolt Fastening Structure

Bolt Fastening

Parameter input

Bolt

Bolt diameter（d）

：

Tensile strength rank

：

Tightening torque（t）

= N・m

Torque coefficient（k）

=

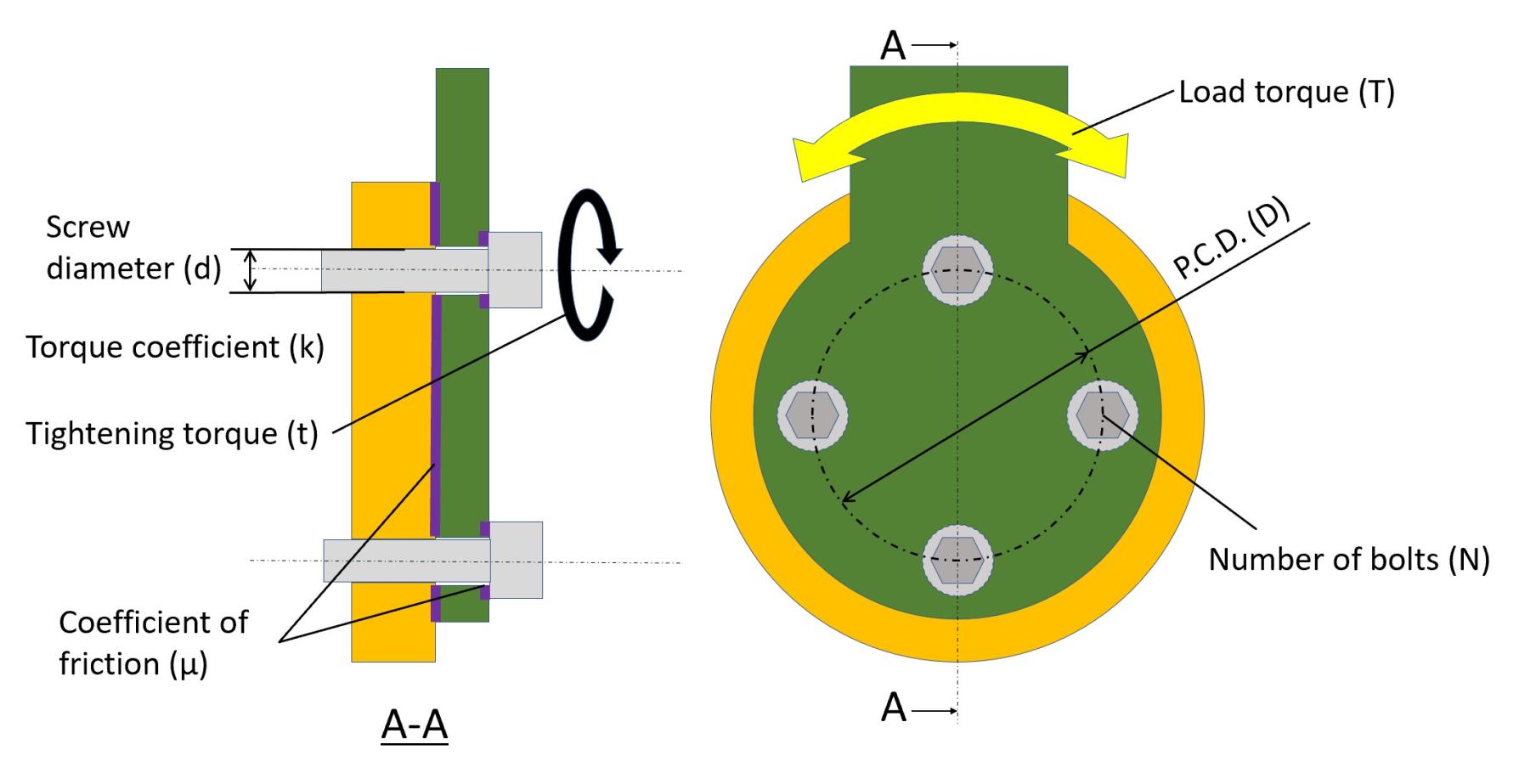

Mounting structure

P.C.D.（D）
= mm
Coefficient of friction（μ）
=
Number of bolts
=

External force

Load torque（T）
= N・m

Result

Axial force
(per a bolt) f

= N

Safety ratio against bolt destruction s(t)

=

Resistance force against Load torque R

= N・m

Safety ratio against slippage S(T)

=

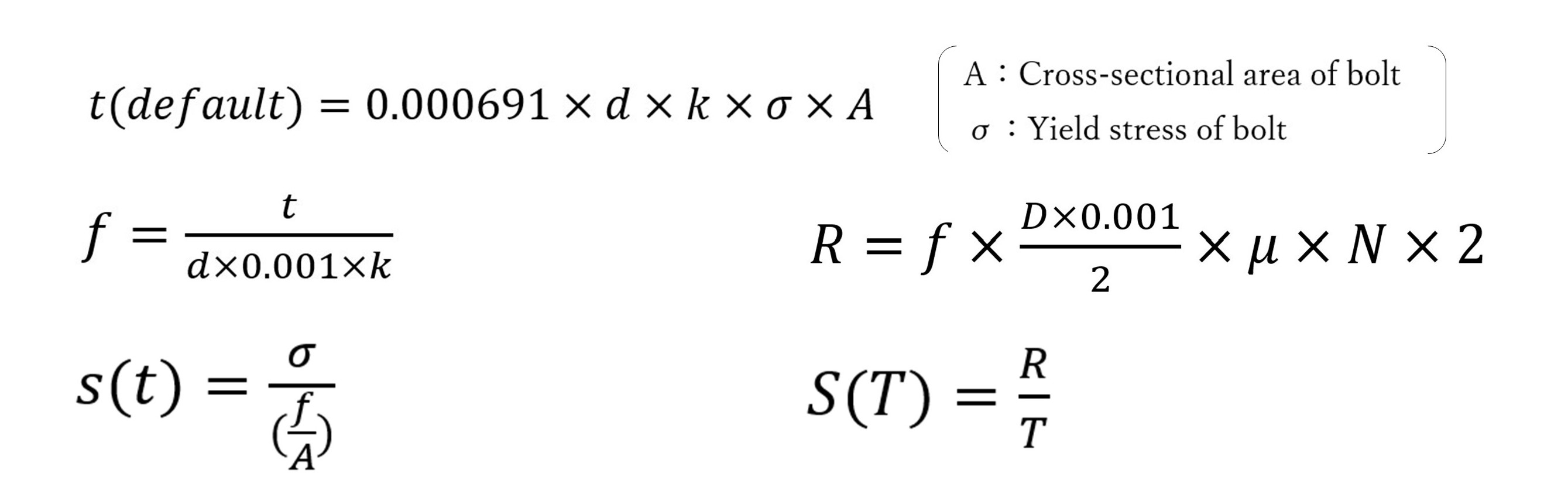

Fomulas

bolt_fastening_fomulas
